Product Description

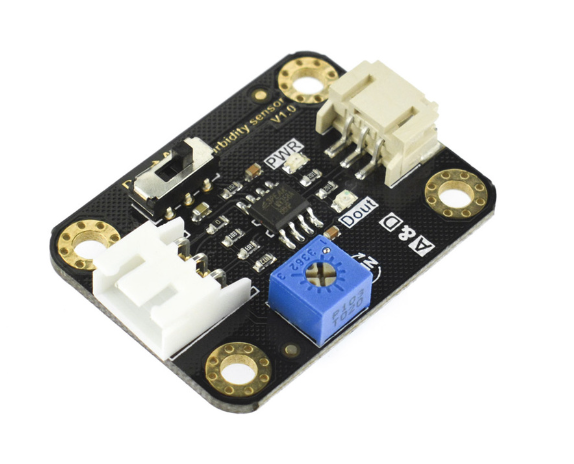

Gravity: Analog Turbidity Sensor for Arduino
Introduction
This Arduino turbidity sensor has both analog and digital signal output modes. You can select the mode according to the MCU as the threshold is adjustable in digital signal mode.
Turbidity sensors can be used in the measurement of water quality in rivers and streams, wastewater and effluent measurements, sediment transport research, and laboratory measurements.
Please note that the top of probe is not waterproof!
Specification
- Operating Voltage: 5V DC
- Operating Current: 40mA (MAX)
- Response Time: <500ms
- Insulation Resistance: 100M (Min)
- Output Method: Analog/Digital
- Analog Output: 0-4.5V
- Digital Output: High/Low-level signal (you can adjust the threshold value by adjusting the potentiometer)
- Operating Temperature: 5℃~90 ℃
- Storage Temperature: -10℃~90℃
- Weight: 30g
- Adapter Dimensions: 38mm*28mm*10mm/1.5inches *1.1inches*0.4inches
Documents
Shipping List
- Turbidity sensor adapter x1
- Turbidity sensor probe x1
- Turbidity sensor cable x1
- Gravity analog sensor cable x1
